The Definitive Guide to Choosing a 4K Camera System for Home with NVR System

In the modern landscape of residential security, standard definition or even 1080p high definition (HD) systems are rapidly becoming obsolete. When faced with a security incident, the difference between capturing a vague outline and capturing irrefutable, crystal-clear facial features or license plates is the difference between a successful identification and a frustrating dead end. This critical need for clarity has driven the market toward Ultra HD solutions, making the 4k camera system for home with nvr system the gold standard for serious property protection.

Investing in a 4K solution isn’t just about maximizing pixel count; it’s about investing in forensic accuracy and comprehensive coverage. For homeowners seeking peace of mind, understanding the synergy between high-resolution cameras and a robust Network Video Recorder (NVR) is paramount. This guide will walk you through the essential components, technical considerations, and advanced features necessary to build and maintain the most effective security backbone for your property.

The Imperative Shift to 4K Security: Why Resolution Matters

The term “4K,” often used interchangeably with Ultra HD (UHD), refers to a resolution of approximately 3840 x 2160 pixels, totaling nearly 8.3 megapixels. This represents a monumental leap over traditional security standards. While 1080p (Full HD) has served us well, its limitations become glaringly obvious when footage requires digital zooming or when the incident occurs at a distance from the camera lens.

The primary goal of any security setup is not merely to record an event, but to capture actionable evidence. This is where the 4k camera system for home with nvr system truly shines, providing detail that simply cannot be replicated by lower-resolution counterparts.

The Critical Difference: 8 Megapixels vs. Traditional HD

To put the resolution increase into perspective, a single 4K frame contains four times the pixel data of a 1080p frame (2 megapixels). This massive increase in data density translates directly into superior clarity and coverage.

Consider a driveway or a large backyard. If you use a 1080p camera to cover this expansive area, zooming in on a distant object will quickly result in pixelation—the image breaks down into large, blocky squares, rendering any critical detail useless. In contrast, a 4K camera maintains usable detail even after significant digital magnification. This forensic capability is non-negotiable for identifying individuals, reading vehicle details, or proving the nature of an intrusion.

Furthermore, higher resolution often means fewer cameras are needed to cover the same area effectively. A single, well-placed 4K camera might replace two or three 1080p cameras, simplifying installation, reducing maintenance costs, and easing the burden on the 4k nvr processor.

The Forensic Advantage of High Resolution

In law enforcement and insurance claims, the quality of surveillance footage is the linchpin of any investigation. Low-resolution footage is frequently dismissed as inconclusive evidence.

The “forensic advantage” of a high-resolution security system is clear:

1. Positive Identification: The ability to clearly capture facial features, clothing details, and unique markings is drastically improved.
2. License Plate Capture: At night or from a distance, license plate recognition is often impossible with standard HD. 4K, especially when coupled with specialized camera features like high dynamic range (WDR), significantly increases the likelihood of capture.
3. Wider Field of View (FoV): Many 4K lenses capture an extremely wide field of view without sacrificing pixel density, allowing a homeowner to monitor a vast area—like the entire front of the house and the street—with a single camera while still retaining the ability to zoom in on specific points of interest.

Read more: The Ultimate Guide to 2K CCTV Cameras: Defining the New Era of High-Definition Surveillance

Understanding the Core Components: The 4K Camera System

While the NVR serves as the brain, the cameras are the eyes of the operation. Selecting the right camera units is crucial for maximizing the potential of your 4k camera system for home with nvr system.

Camera Types: Turret, Bullet, and Dome Options

Modern 4K cameras come in several primary form factors, each suited for different applications:

• Bullet Cameras: Easily recognizable and highly visible, bullet cameras act as a strong visual deterrent. They usually offer long-range infrared (IR) night vision and are mounted using a swivel joint, making them easy to aim. Their visibility, however, also makes them slightly more susceptible to tampering if placed within reach.
• Dome Cameras: Offering a sleek, less conspicuous profile, dome cameras are often vandal-resistant due to their hardened polycarbonate or metal housings. They are excellent for indoor use or covered outdoor areas like porches. While they are discreet, their viewing angle can be slightly harder to adjust after installation compared to a bullet camera.
• Turret Cameras (Eyeball Cameras): Gaining popularity, turret cameras offer the flexible aiming of a bullet camera but without the glass dome that can sometimes cause internal IR reflection (a common issue in dome cameras). They are often the preferred choice for reliable 24/7 outdoor monitoring.

When configuring a residential system, experts often recommend a mix: highly visible bullets or turrets for perimeter deterrence, and discreet domes for sensitive entry points or interior coverage.

Essential Camera Features for Peak Performance

Resolution alone is not enough. A truly effective 4K camera must possess advanced features to handle challenging lighting and environmental conditions:

1. Power over Ethernet (PoE)

Virtually all high-end 4K security systems utilize PoE technology. PoE allows a single Ethernet cable (Cat5e or Cat6) to carry both power and data from the 4k nvr directly to the camera. This drastically simplifies installation, eliminating the need for separate power outlets near every camera location and reducing cable clutter. This seamless connectivity is a hallmark of a professional-grade 4k camera system for home with nvr system.

2. Wide Dynamic Range (WDR)

WDR is vital for cameras facing high-contrast environments, such as a camera pointed at a doorway where bright sunlight streams in from outside. Without WDR, the interior would appear too dark (underexposed) and the exterior too bright (overexposed), losing detail in both extremes. True WDR technology (usually 120dB or higher) balances these light levels, ensuring clear detail in both the shadows and highlights—a necessity for reliable facial recognition during the daytime.

3. Superior Night Vision Technology

While traditional IR LEDs provide basic black-and-white night vision, modern 4K systems leverage advanced technologies:

• EXIR or Smart IR: These technologies prevent overexposure of objects close to the camera (like a face pressed against the lens) while still providing illumination for distant objects.
• Color Night Vision (Starlight/DarkFighter): Cameras equipped with oversized sensors and advanced aperture settings can capture color video in extremely low-light conditions, often requiring only ambient starlight or minimal street lighting. Color footage is infinitely more valuable for forensic analysis than monochrome.

4. Weatherproofing and Durability

Outdoor cameras must meet specific ingress protection (IP) ratings, typically IP66 or IP67, indicating high resistance to dust and powerful water jets. Additionally, the camera housing should have an IK rating (IK10 is best) if placed in a location susceptible to vandalism or impact damage.

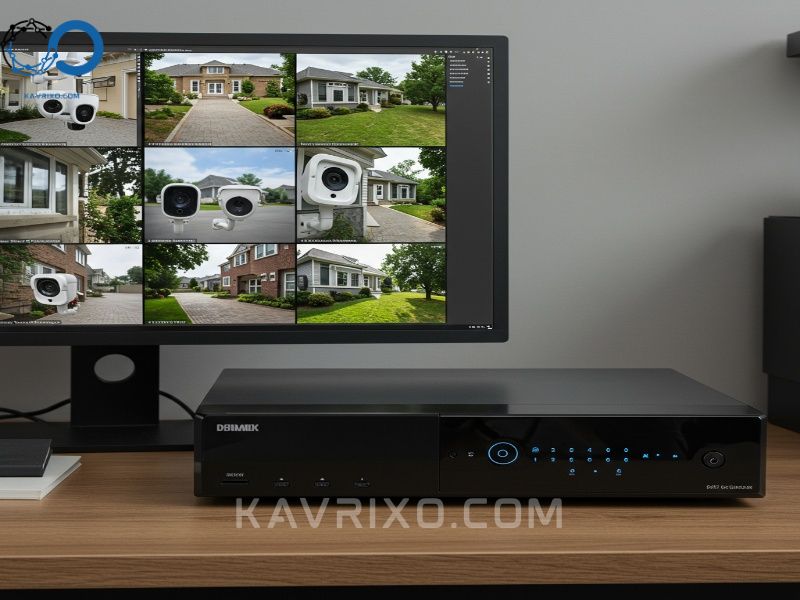

The Heart of the System: Choosing the Right NVR (Network Video Recorder)

The NVR is the core operational unit. It manages network traffic, handles video compression (typically H.265+ for 4K streams), provides user interfaces, and, most importantly, stores the massive amounts of data generated by the 4K cameras. When dealing with a 4k camera system for home with nvr system, the choice of NVR is the single biggest factor determining system performance and reliability.

Decoding NVR Channel Capacity and Throughput

When purchasing an NVR, two specifications are non-negotiable for 4K performance: channel capacity and recording throughput.

Channel Capacity

This is the maximum number of cameras the NVR can manage (e.g., 4-channel, 8-channel, 16-channel). Always choose an NVR with more channels than you currently need. If you plan on starting with four cameras, selecting an 8-channel NVR provides necessary room for future expansion without replacing the central hardware.

Recording Throughput (Crucial for 4K NVRs)

This specification, measured in Megabits per second (Mbps), indicates the total amount of incoming data the NVR can simultaneously record without dropping frames or stuttering. 4K streams are data-heavy. A single 4K camera transmitting high-quality video (using H.265 compression) might require between 10 Mbps and 20 Mbps, depending on the frame rate (FPS) and bit rate settings.

A poorly specified NVR might only offer 80 Mbps of total throughput. If you connect six 4K cameras, each demanding 15 Mbps, the total requirement is 90 Mbps (6 x 15). This immediately overloads the NVR, causing instability, low frame rates, and unreliable recording.

A reliable 4k nvr designed for high-end residential use should offer a throughput of at least 160 Mbps, and preferably 200 Mbps or more, especially for systems with 8 or more cameras. Always calculate your potential maximum data load and choose an NVR that offers a substantial buffer (at least 25% overhead).

Storage Solutions: HDD Requirements for 4K Footage

The sheer volume of data generated by 4K cameras is staggering. Higher resolution means larger file sizes.

Resolution	Storage per Day (Approx.)
1080p (2MP)	10-15 GB
4K (8MP)	30-45 GB

If you have an 8-camera 4k camera system for home with nvr system, recording 24/7, the system could consume 320 GB of storage per day. To maintain a standard 30-day continuous recording history, you would need over 9.6 Terabytes (TB) of storage capacity.

• Hard Drive Type: Always opt for surveillance-grade hard drives (like WD Purple or Seagate SkyHawk). These drives are specifically engineered for the constant read/write cycles and high-temperature environments typical of NVR operation, unlike standard desktop drives.
• NVR Bay Capacity: Check how many hard drive bays the 4k nvr supports. An NVR supporting two or more drives allows for easy capacity expansion and, crucially, redundancy (RAID setup), which protects against data loss if one drive fails.

PoE NVRs vs. Non-PoE NVRs

Most consumer and prosumer 4k nvr options include built-in PoE ports directly on the back panel. This is often the simplest and most cost-effective solution for a home setup, as the NVR powers the cameras directly.

However, for larger homes or complex installations requiring long cable runs (over 300 feet), you may need an NVR without integrated PoE. In this scenario, the NVR connects to a dedicated, high-throughput PoE switch. The cameras connect to the switch, and the switch handles power delivery and data traffic before sending the consolidated video feed to the NVR via a single uplink port. This setup offers greater flexibility, better cable management, and improved network performance management, particularly critical for maximizing the potential of a high-end 4k camera system for home with nvr system.

Integration and Installation: Setting up Your Comprehensive Surveillance

Proper installation is arguably as important as the quality of the hardware. A poorly installed 4K system is no better than a basic 720p setup.

Network Planning and Bandwidth Considerations

While the NVR handles the internal recording, the entire system relies on your home network for remote viewing, firmware updates, and cloud backups.

A 4k camera system for home with nvr system places significant strain on network bandwidth. Even if the NVR is isolated on its own network segment (highly recommended), remote access requires upload speed. Viewing a live 4K stream on your phone or computer requires your home’s internet connection to upload the video data. Ensure your Internet Service Provider (ISP) plan offers sufficient upload bandwidth (typically 5 Mbps or more per simultaneous 4K stream you wish to view remotely).

For professional results, consider segregating the surveillance network. Using a separate VLAN or dedicated switch for the cameras ensures that security traffic doesn’t clog the main home Wi-Fi used for streaming and gaming.

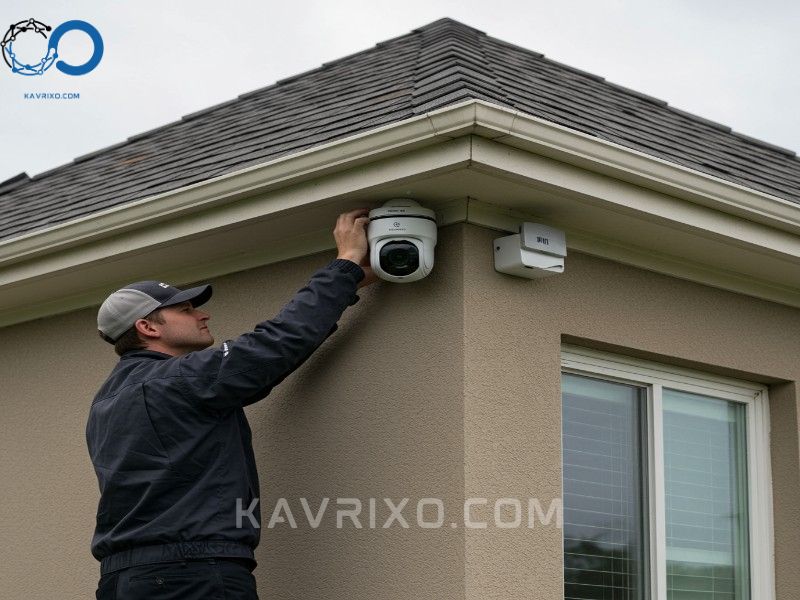

Optimal Camera Placement for Maximum Coverage

The high resolution of 4K allows for wider coverage, but cameras must be placed strategically to exploit this potential while mitigating vulnerabilities.

1. Entry Points: Every door (front, back, garage access) and first-floor window should be covered.
2. Perimeter: Place cameras high up (10-15 feet) to prevent tampering and ensure a clear view of the property line. Angling the camera slightly downward helps capture facial details as people approach.
3. Light Sources: Avoid pointing cameras directly into the sun (morning or afternoon) unless the camera has exceptional WDR capabilities. Similarly, ensure night vision IR illuminators are not reflecting off nearby surfaces (like gutters or paintwork), which can white out the image.
4. Areas of Interest: Focus on areas where valuables are stored or where vehicles are parked.

The Importance of Remote Access and Mobile Apps

A modern 4k camera system for home with nvr system is incomplete without robust remote access capabilities. The accompanying mobile application should allow for:

• Instant Playback: Quickly reviewing recorded footage based on time or motion events.
• Push Notifications: Immediate alerts when motion or AI events are detected.
• Live View Streaming: Viewing live footage, ideally with the option to stream in a lower resolution (substream) to save mobile data, while still having the ability to pull up the full 4K stream (mainstream) when detail is needed.
• System Health Checks: Confirming that the NVR is recording properly and all hard drives are operational.

Advanced Features that Define a Top-Tier 4K System

Moving beyond simple recording, the latest 4k nvr technologies incorporate artificial intelligence (AI) and smart integration features that transform the system from a passive recorder into an active security partner.

Smart Motion Detection and AI Analytics

Standard motion detection, which relies solely on pixel changes, is notorious for false alarms triggered by shadows, rain, or moving trees. High-end 4K systems now integrate on-camera or NVR-based AI analytics to filter these events:

• Human/Vehicle Detection: The system can accurately distinguish between a person, a car, and non-threat objects (like pets or blowing leaves). This dramatically reduces useless notifications, ensuring that when your phone alerts you, it’s a genuine security event.
• Perimeter Protection (Line Crossing/Intrusion Detection): You can digitally draw virtual lines or boxes on the camera feed. If a person or vehicle crosses that line or enters the box, an alarm is triggered. This is incredibly useful for specific areas like pool gates or property boundaries.
• Facial Recognition: Some advanced 4k camera system for home with nvr system packages can be configured to recognize known family members or employees, triggering alerts only when an unrecognized face appears.

Two-Way Audio and Active Deterrence

Active deterrence features allow the security system to respond to a threat in real-time, often preventing the incident from escalating.

• Two-Way Talk: Cameras equipped with built-in microphones and speakers allow the homeowner to communicate directly with someone on the property, whether it’s instructing a delivery driver or verbally warning an intruder.
• Strobe Lights and Sirens: Some 4K camera models include integrated white-light strobes and adjustable sirens that can be triggered manually or automatically upon detection of an unauthorized person. This sudden, aggressive response is highly effective at scaring off potential intruders who assume the camera is merely recording.

Ensuring Reliability: Redundancy and Backup

Security footage is irreplaceable. A professional 4k camera system for home with nvr system must have contingency plans:

1. Cloud Backup Integration: While local storage on the 4k nvr is the primary method, critical clips (especially those tagged by AI as human intrusion) should be automatically uploaded to a secure cloud service. If the NVR is stolen or destroyed, the vital evidence remains safe off-site.
2. Health Monitoring: The NVR should constantly monitor the health of its hard drives and the connection status of every camera, alerting the user immediately if a camera goes offline or a drive begins to fail.

Cost vs. Value: Investing in Long-Term Home Security

It is true that a high-end 4k camera system for home with nvr system represents a higher initial investment than a simple wireless camera setup or a basic 1080p kit. However, viewing this purchase purely through the lens of initial cost misses the immense value proposition.

Security is not an area for compromise. The extra cost associated with higher throughput NVRs, surveillance-grade hard drives, and 8MP sensors is what guarantees the system will perform reliably when you need it most.

• Reduced Liability: Clear 4K footage can be invaluable in mitigating liability in case of accidents on your property or neighborhood disputes.
• Insurance Benefits: Many insurance providers offer discounts on homeowner policies when a professionally installed, high-resolution security system is in place.
• Peace of Mind: Knowing that every corner of your property is monitored with forensic-level detail provides unparalleled peace of mind, whether you are across town or across the globe.

A cheap system that fails to capture the necessary details during an event is effectively worthless. A quality 4K system is a long-term asset that protects your family, property, and financial interests.

Final Verdict: Securing Peace of Mind with a 4K Camera System

The decision to install a 4k camera system for home with nvr system is a recognition that residential security demands the highest possible standards. The combination of 8-megapixel clarity, powerful H.265+ compression, and sophisticated AI processing delivered by a high-throughput 4k nvr transforms basic surveillance into professional-grade protection.

When selecting your system, prioritize throughput capacity, ensure surveillance-grade storage, and look for advanced features like WDR and smart human/vehicle detection. By focusing on quality components and strategic installation, you ensure that your security system is not just recording events, but capturing the undeniable evidence necessary to safeguard your home and family for years to come.
